Tracks for Analysis and Devices

Icon for launching "Tracks for Analysis and Devices"

In AiM terminology, a track is a model of a racing location anywhere in the world. A track model contains information that allows computations during racing:

  • For firmware: e.g., measuring lap times when crossing the start/finish line stored in the track file.

  • For RaceStudio 3 Analysis: e.g., lap synchronization and comparison between laps, racers, or trajectories.

The track model includes the following information:

  • Start/finish line positions

  • Possible split positions

  • Driven line

  • Time zone and daylight saving time (DST)

For the last two items, see the Time Zone and Daylight Saving Time (DST) section.

Note

Webinar Icon AiM Tech Tips short video, presented by Bryc Talley, named “Managing Tracks.” Click here to watch the August 5th, 2024 video.

The Tracks Manager window is divided into three sections: left, center, and right.

  • Left (Filtering Section): Allows filtering tracks to display subsets. Options: All Tracks, Nations, Smart Collections, Manual Collections, Connected Devices. (Connected Devices will be explained in the Devices section.)

  • Center (Tracks List): Displays all tracks by default. Shows key information and provides buttons for main operations.

  • Right (Detail Window): Shows detailed track shape, weather forecast, predictive reference laps, and user pit lanes for the track under the mouse cursor.

All Tracks

Select All Tracks in the left column to display all tracks you have managed. At first use, RaceStudio 3 automatically downloads available tracks from the AiM server.

Tracks of Specific Nations

Select a nation in the left column to display only tracks associated with that nation.

Tracks in Smart Collections

Create Smart Collections to group tracks based on criteria. Selecting a Smart Collection filters the tracks list according to the defined criteria.

Tracks in Manual Collections

Create Manual Collections to group tracks manually. After creating a collection, selecting it displays only tracks contained in that collection.

List of Tracks

Buttons above the tracks list allow the following operations:

  • New / Delete: - Add or remove a track. New creates a track from scratch. You can also copy an existing AiM track and save modifications.

  • Import / Export: - Add a track from an external drive (Import) or copy a track to a drive (Export).

  • Receive / Transmit: - Add a track from a connected device (Receive) or send a track to a device (Transmit).

Tracks search bar

The search bar allows filtering tracks by:

  • Track long name contains

  • Track short name contains

  • Track city begins with

Multiple words can be entered, with options to match ANY or ALL words.

Web-based Maps

Web-based maps display driven line data on an enhanced base map. The offline track base remains available if no internet connection is present. Different tile providers can also be selected.

Time Zone and Daylight Saving Time (DST)

The track’s time zone rarely changes. DST information stored in track files is valid for the next 10 years.

AiM devices use this information to automatically set the correct local time after GPS synchronization. If a device is powered on away from a track, it uses the time zone and DST information from the nearest loaded track.

Keep your RaceStudio 3 track database and device tracks updated. Sending tracks from RaceStudio 3 to your AiM device does not slow track recognition.

For facilities with multiple track configurations (e.g., Buttonwillow CA), you can manually select the configuration on the device.

Track Preview for the Track under Mouse Pointer

The preview window shows key track information:

  • Time zone and local time

  • Website and phone number

  • Directions and coordinates

Track under mouse pointer

Main Track Information

Displays the color-coded driven line, indexed by GPS altitude.

Weather Forecast

Displays forecasts for up to three days:

  • Left column: start time

  • Right column: end time

  • Center: graphical representation with values under the mouse pointer

Weather forecasts

To use this feature, you must log into your AiM account. See the Registration, Feedback, and Support section of this manual.

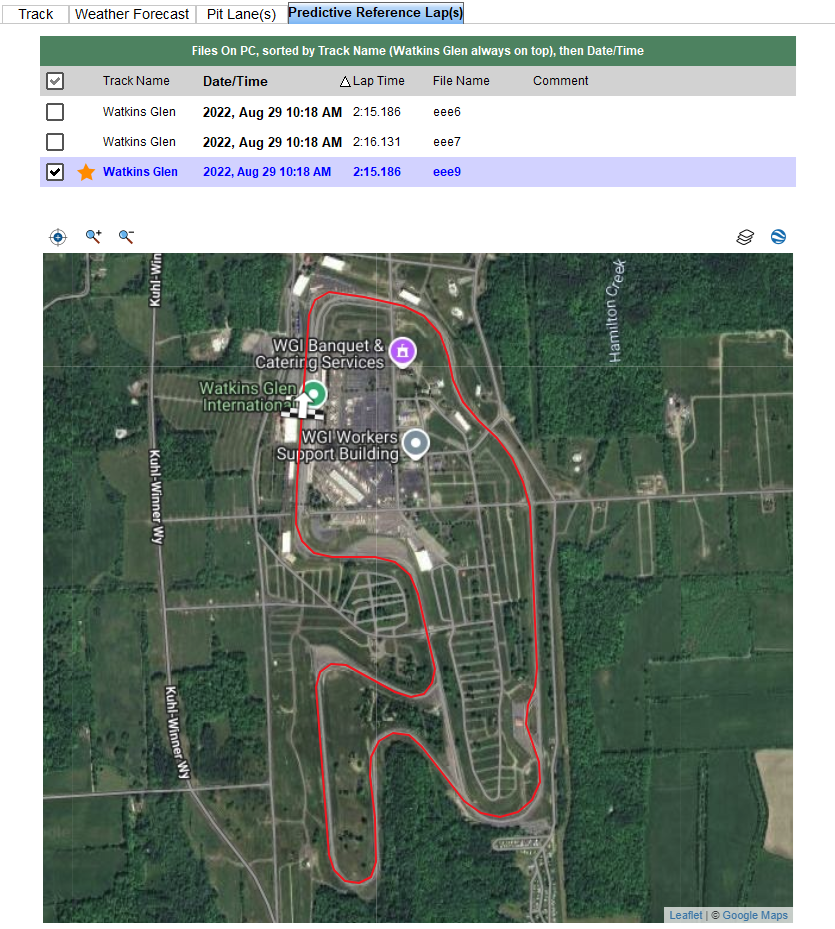

Predictive Reference Lap in Tracks

See Predictive Reference Lap for a complete explanation of predictive lap times.

This window displays all predictive reference lap files bound to the selected track configuration. The track map shows the driven line for the selected reference file. If only one file exists, it is automatically selected; otherwise, choose one from the list.

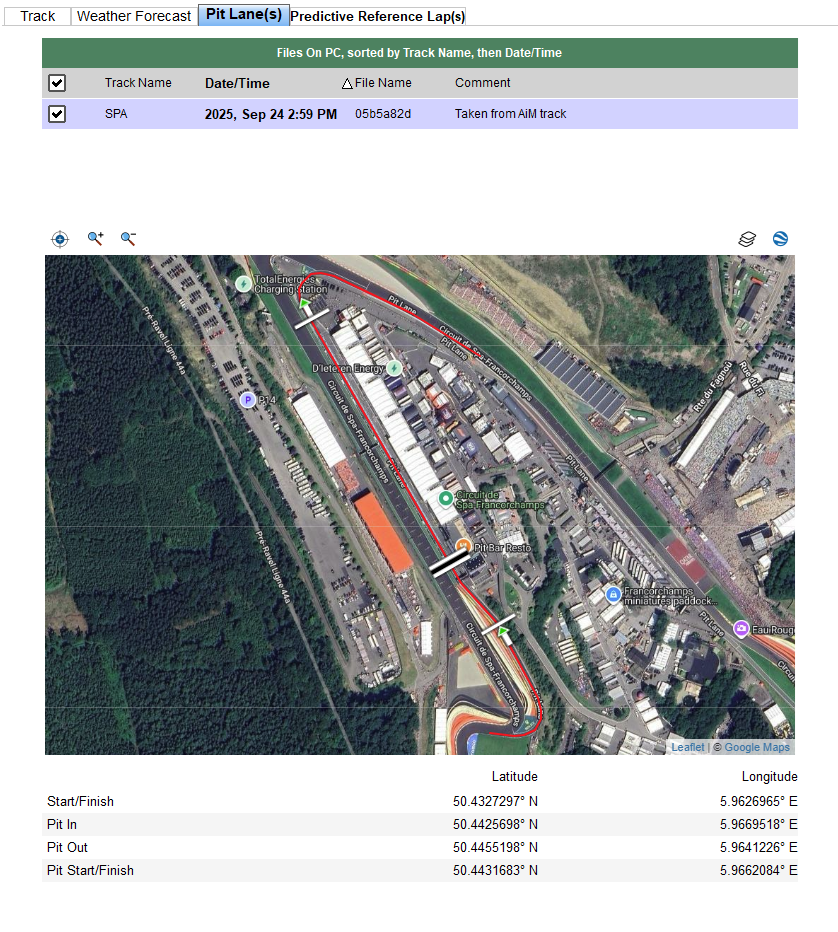

User Pit Lane in Tracks

See User Pit Lane for a complete overview of user pit lane information.

This window displays all user pit lane files bound to the track’s start/finish line position. A pit lane with a light red background is included in the track file (*.tkk) and is used if GPS pit lane is enabled and no additional pit lane files are loaded.

Select a file from the list to visualize its points (IN/OUT/Lap) on the track map.

Track Creation Process

To create a new track, you must provide at least the start/finish line positions. You can enhance the track by adding the driven line from any logged session.
