EXPAND THE SYSTEM ACCORDING TO YOUR NEEDS |
|
|
|
|
Using the built-in CAN bus, you can add expansion modules to your MX device to increment the performance and the data acquired. Among these: |
|
|
|
|
|
|
|
| GPS09c |
|
| Thanks to GPS09c (included in the kit) and its RaceStudio 3 software, you can immediately get laptimes and all data needed for engine tuning as well as for improving driving technique. |
|
|
 |
|
|
|
|
|

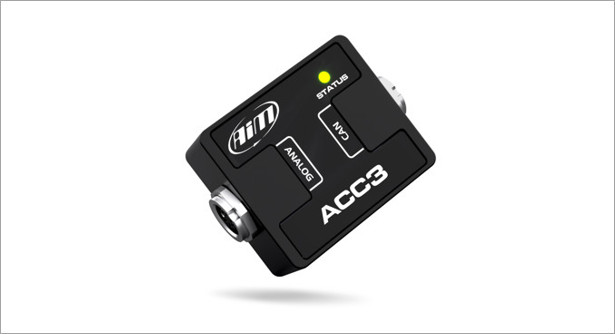

| ACC3 |
|
ACC3 manages up to 4 analog inputs to a max frequency of 1 kHz each: thermocouples, thermoresistances, 0÷5 V, 0÷12 V.
ACC3 features 2 speed inputs at a maximum frequency of 10 kHz. |
|
|
 |
|
|
|
|
|

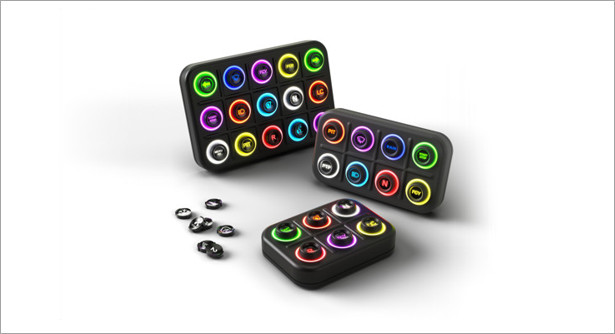

| K Keypads |
|
K6, K8 and K15 are compact keypads based on CAN-Bus protocol.
The devices are water and dust resistant and can be installed both inside and outside the cockpit.
They are fully customizable and proposed with a wide range of interchangeble inserts. |
|
|
 |
|
|
|
|
|
| LCU1S |
|
LCU1S controller allows to perfectly tune the carburetion of your engine to keeping it at its best and improve the engine's performances.
lt uses a wide band Bosch LSU 4.9 sensor that saves the original calibration for the duration of the sensor's life. |
|
|
 |
|
|
|
|
|
| SmartyCam 3 Series |
|
The new motorsport cameras by AiM have been designed for motorsport with a single purpose: providing great videos including all information you need.
SmartyCam 3 Sport camera overlays all the data from both GPS and AiM loggers connected to your ECU. |
|
|
 |
|
|
|
|
|
|
