| TECHNICAL SPECIFICATIONS |
|
|
|
|
|
| Display |
7” TFT |
| Resolution |
800x480 pixels |
| Contrast |
1,000:1 |
| Brightness |
700cd/m2 - 1,100 Lumen |
| Ambient light sensor |
Yes |
| Alarm LEDs |
8 configurable RGB LEDs |
| Shift lights |
10 configurable RGB LEDs |
| CAN connections |
3 |
| ECU connections |
CAN or K-Line |
| ECU compatibility |
+ 2,000 industry leading ECUs |
| External modules |
GPS09c, ACC3, LCU1S, SmartyCam 3 Series |
| Analog inputs |
4 fully configurable, max 500 Hz each |
| EXT video inputs |
1 PAL-NTSC |
| Second CAN |
Yes |
| Body |
Anodized Aluminum |
| Pushbuttons |
Metallic |

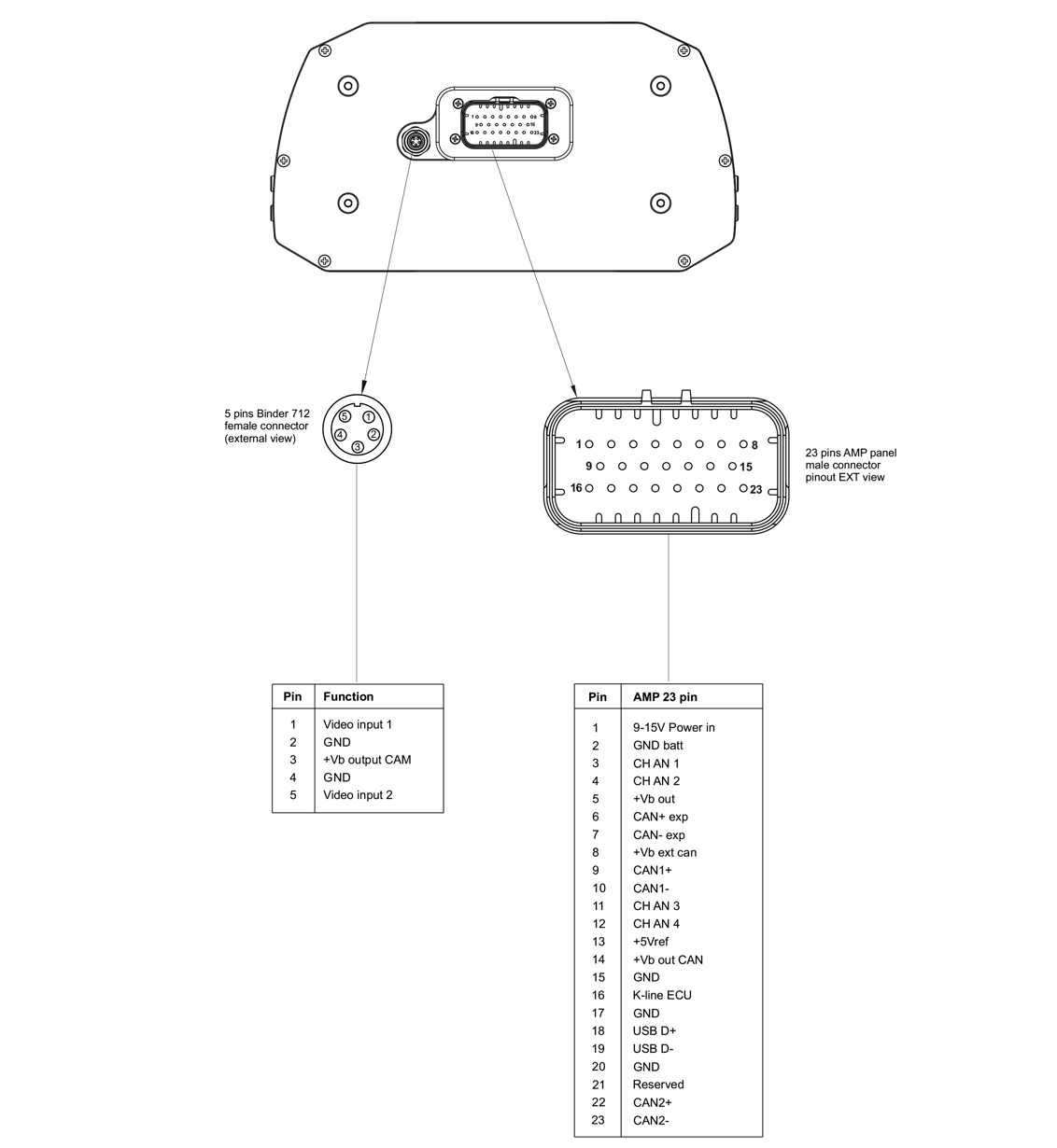

| Connectors |
1 AMP connector + 1 Binder connector |
| Power consumption |
400 mA |

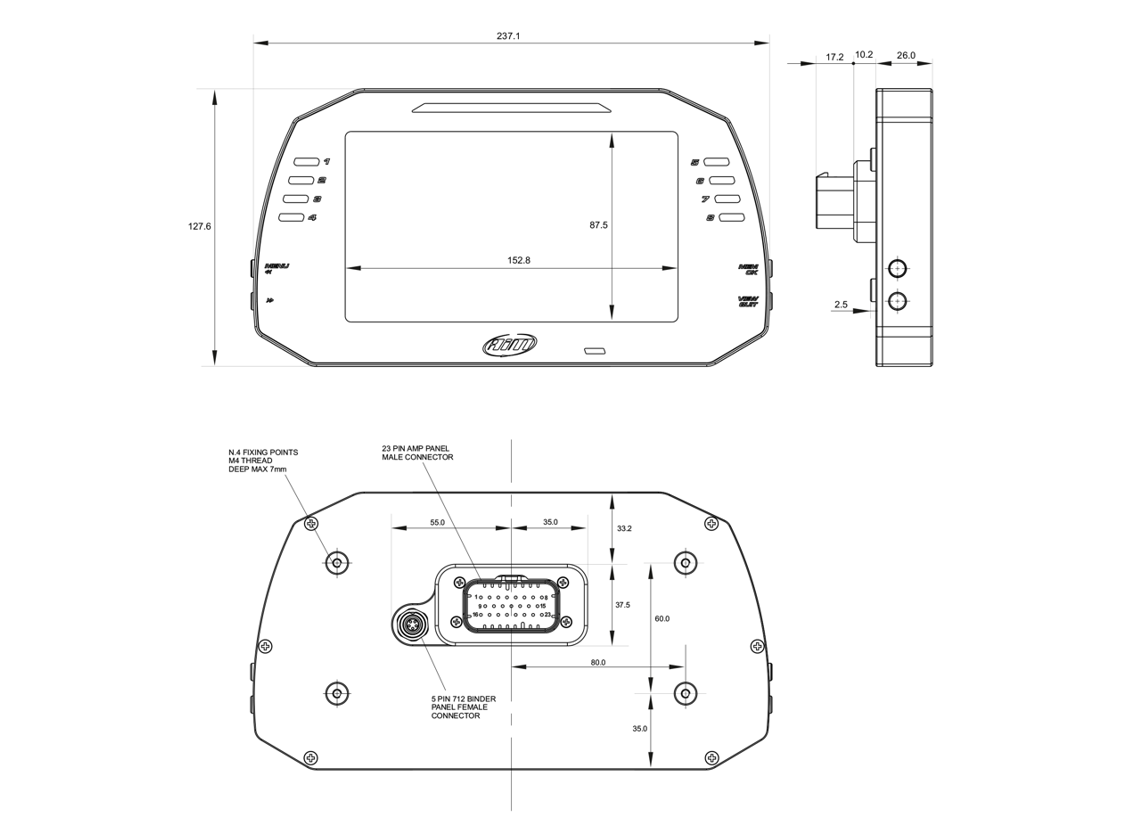

| Dimensions |
237.1 x 127.6 x 26.0 mm |
| Weight |
850 g |
| Waterproof |
IP67 |
|
|
|
|
| AVAILABLE KITS |
|
|
|
All kits include: MXG Strada Light (standard or street icons version), 23 pins standard or full harness, Amphenol-Mini USB Adapter, USB-Mini USB cable.
User manual & RaceStudio 3 software freely downloadable here. |
|
| MXG Strada Light standard version + 23 pins standard harness |
XMXGSLASH0 |
|
| MXG Strada Light standard version + 23 pins full harness |
XMXGSLAFH0 |
|
| MXG Strada Light street icons version + 23 pins standard harness |
XMXGSLISH0 |
|
| MXG Strada Light street icons version + 23 pins full harness |
XMXGSLIFH0 |
|
|
| ACCESSORIES & SPARE PARTS |
|
|
|
| 23 pins standard harness |
V02573630 |
|
| 23 pins full harness |
V02573620 |
|
| Amphenol-Mini USB Adapter |
V02573200 |
|
| USB-Mini USB cable 200 cm |
X90TMPC002 |
|
|
|
|
|
