K6/K8/K15 |
|
The CAN-Bus Keypads Series |
|
Compact,
fully customizable,
water and dust proof. |
|
|
|

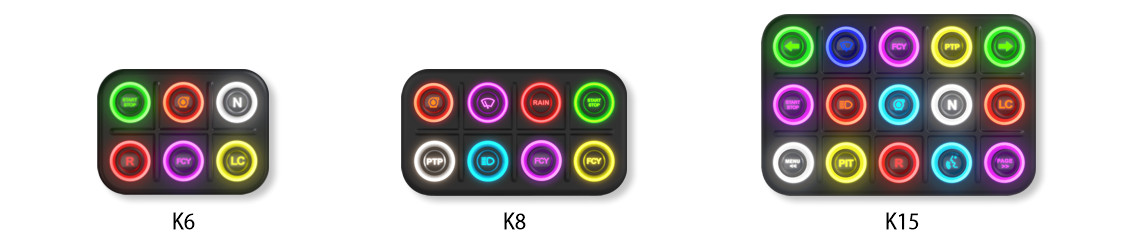

K6, K8 and K15 are compact keypads based on CAN-Bus protocol: |
|
|
|
|
|
|
|
|
The devices are water and dust resistant and can be installed both inside and outside the cockpit.
They are fully customizable and proposed with a wide range of interchangeble inserts.
All the keypads are available as AiM expansion and as Open version: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Connectable to |
|
AiM master devices |
|
Other devices |
|
AiM master devices |
|
Other devices |
|
AiM master devices |
|
Other devices |
| Pushbuttons |
|
6 programmable keys |
|
8 programmable keys |
|
15 programmable keys |
| Backlight |
|
RGB with dimming option |
| Connection |
|
AiM CAN 5 pins
Binder 712 |
|
USB CAN 7 pins
Binder 712 |
|
AiM CAN 5 pins
Binder 712 |
|
USB CAN 7 pins
Binder 712 |
|
AiM CAN 5 pins
Binder 712 |
|
USB CAN 7 pins
Binder 712 |
| Materials |
|
Rubber silicon and PA6 GS30% reinforced |
| Dimensions |
|
97.4 x 71.4 x 24 mm |
|
127.4 x 71.4 x 24 mm |
|
157.4 x 104.4 x 24 mm |
| Weight |
|
120 g |
|
150 g |
|
250 g |
| Waterproof |
|
IP67 |
|
|
|
|
|
|
Common features: |
|
|
Reconfigurable buttons |
|
|
Programmable RGB LEDs |
|
|
LED backlit rings and icons |
|
|
Momentary, toggle and multi-status |
|
|
2 blinking mode |
|
|
Wide range of inserts |
|
|
CAN-Bus system compatible |
|
|
Vertical or horizontal mount |
|
|
Status restore option |
|
|
|
|
|
|
|
K KEYPADS AiM EXPANSION FEATURES |
|
|
K Keypads can be connected to the AiM master devices such as dashes, dash loggers and PDMs. |
|
 |
|
|
They can be freely configurable as an expansion using the AiM software RaceStudio 3. |
|
 |
|
|
|
|
|
| The pushbuttons can be: |
|
| MOMENTARY |
| The pushbutton status is ON when the pushbutton is pushed. |
|
| TOGGLE |
| The pushbutton status changes from ON to OFF every time the pushbutton is pushed. |
|
| MULTISTATUS |
| The pushbutton value changes from 0 to a MAX Value every time the pushbutton is pushed. |
|
|
 |
|
|
|
|
|
| |
| RGB LEDs |
RGB LEDs are the best choice in low visibility conditions.
Every pushbutton can be enlightened in 1 of 8 different colors, solid or blinking, according to the configuration defined by the user. |
|
|
 |
|
AVAILABLE RGB LEDs COLORS |
|
|
|
It is possible to configure a pushbutton for incrementing or decrementing the K6/K8/K15 LEDs brightness. |
|
|
|
|
|
|
| ADDITIONAL CONTROLS |
| In addition to the primary functionality of the buttons, K6/K8/K15 buttons can be setup for managing the AiM display connected to the devices. |
|
|
 |
|
|
|
|
|
| |
| INTERCHANGEABLE INSERTS |
It is possible to choose among a wide range of inserts available; with 72 elements easily interchangeable, you'll have the possibility to create different configurations with the same K6/K8/K15 keypad based on any needs.
(see the complete list) |
|
|
 |
|
|
|
|
OPEN VERSIONS FEATURES |
|
|
K Keypads, just like GPS09c or ACC3, are available in "Open Version". These keypads can be easily configurable via USB with AiM software RaceStudio 3 for transmitting the data via CAN to every external device.
The "Open Versions" can also be used as an AiM Expansion, without any issues or limitations. |
|
 |
|
|
|
|
| The pushbuttons can be: |
|
| MOMENTARY |
| The pushbutton status is ON when the pushbutton is pushed. |
|
| TOGGLE |
| The pushbutton status changes from ON to OFF every time the pushbutton is pushed. |
|
| MULTISTATUS |
| The pushbutton value changes from 0 to a MAX Value every time the pushbutton is pushed. |
|
|
|
|
|
|
|
|
| |
| RGB LEDs |
RGB LEDs are the best choice in low visibility conditions.
Every pushbutton can be enlightened in 1 of 8 different colors, solid or blinking, according to the configuration defined by the user. |
|
|
|
|
AVAILABLE RGB LEDs COLORS |
|
|
|
It is possible to configure a pushbutton for incrementing or decrementing the K6/K8/K15 LEDs brightness. |
|
|
|
|
|
|
| CAN MESSAGES CONFIGURATION |
| The status of the pushbuttons is transmitted at fixed frequency or/and when it changes. |
|
| The CAN messages as frequency, IDs, baud rate, endian and contents can be freely configured. |
|
| The status of every pushbutton at the power OFF can be hold at the next power ON. |
|
| K6/K8/K15 Open Keypads can manage a CAN INPUT protocol, in order to give a feedback, trough the color LEDs, based upon the information received. |
|
|
 |
|
|
|
|
|
| |
| INTERCHANGEABLE INSERTS |
It is possible to choose among a wide range of inserts available, with 72 elements easily interchangeable, you'll have the possibility to create different configurations with the same K6/K8/K15 keypad based on any needs.
(see the complete list) |
|
|
|
|
|
|
|
|
|
|
|
|
