| TECHNICAL SPECIFICATIONS |
|
 |
|
 |
|
| ECU connection |
CAN, RS232 or K-Line to 2,000+ industry leading ECUs |
| External modules |
GPS09c, LCU Series, SmartyCam Series |
| Analog inputs |
5 fully configurable, max 1,000 Hz each |
| Digital inputs |
2 Speed inputs, lap signal, coil RPM input |
| Inertial platform |
Internal 3 axis ±5G accelerometer + 3 axis gyro |
| Digital outputs |
1 (1 Amp max) |
| Internal memory |
4 GB |

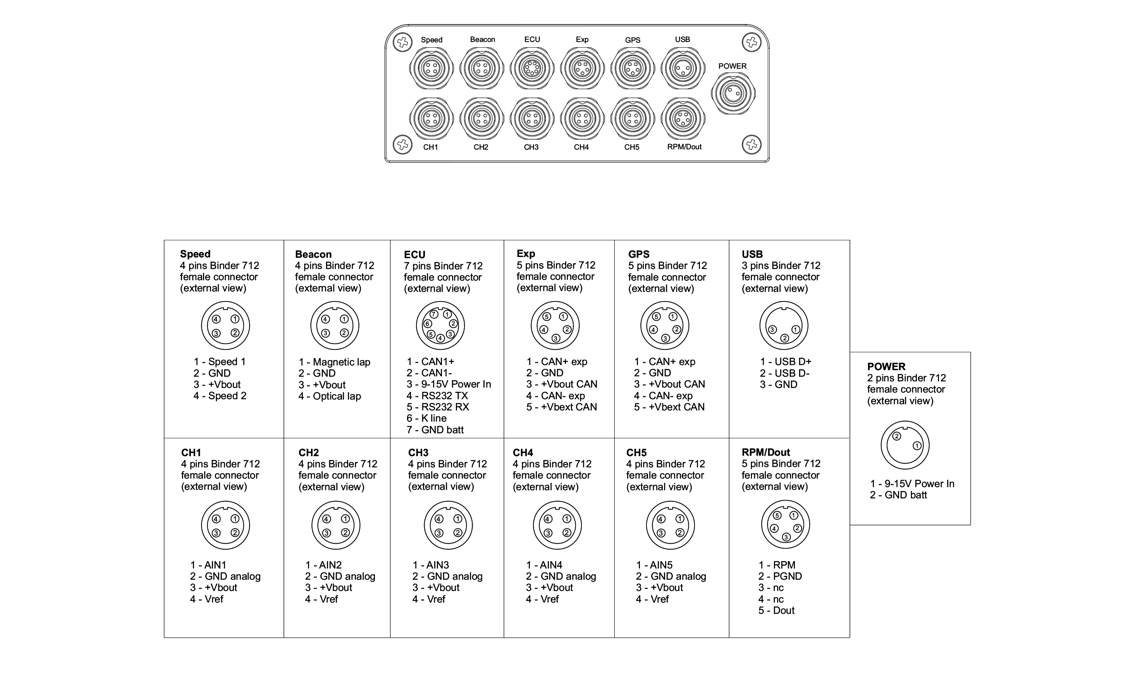

| Connectors |
13 Binder 712 female connectors |
| Body |
Anodized Aluminum |
| LEDs |
1 system status |

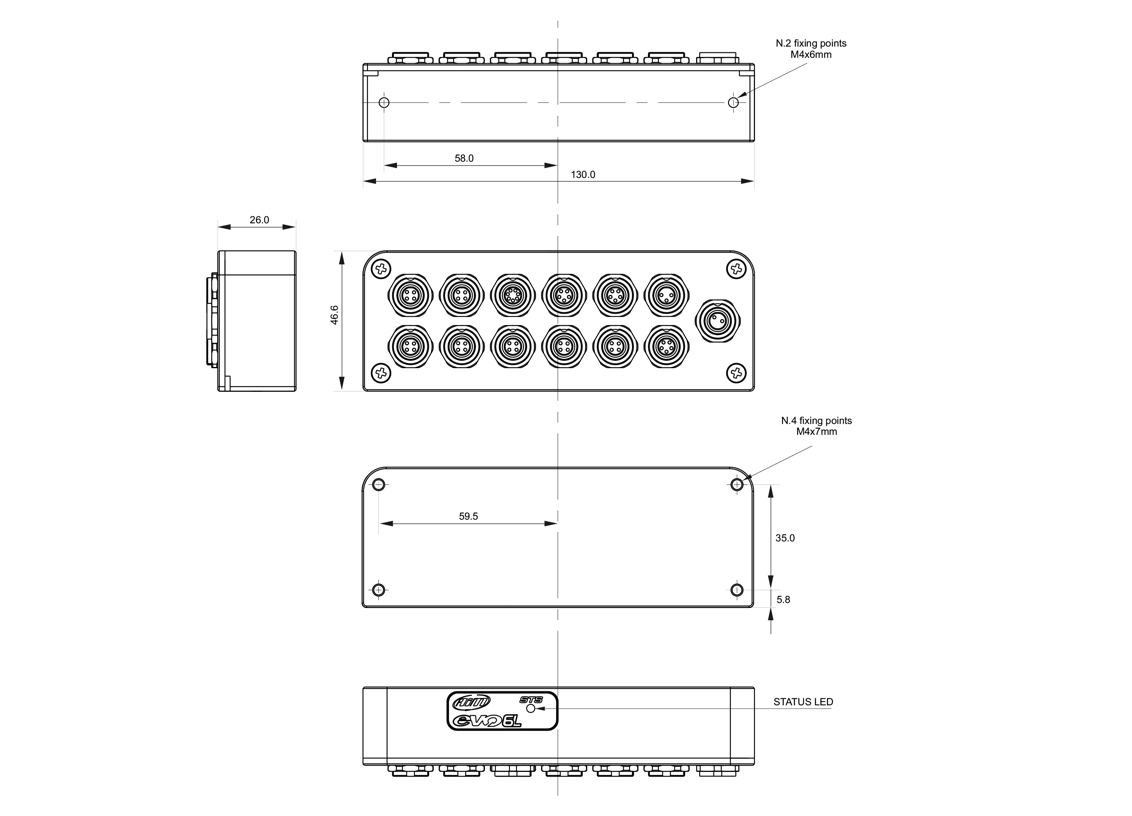

| Dimensions |
130.0 x 46.6 x 26.0 mm |
| Weight |
230 g |
| Waterproof |
IP65 |
|
|
 |
|
|
|
